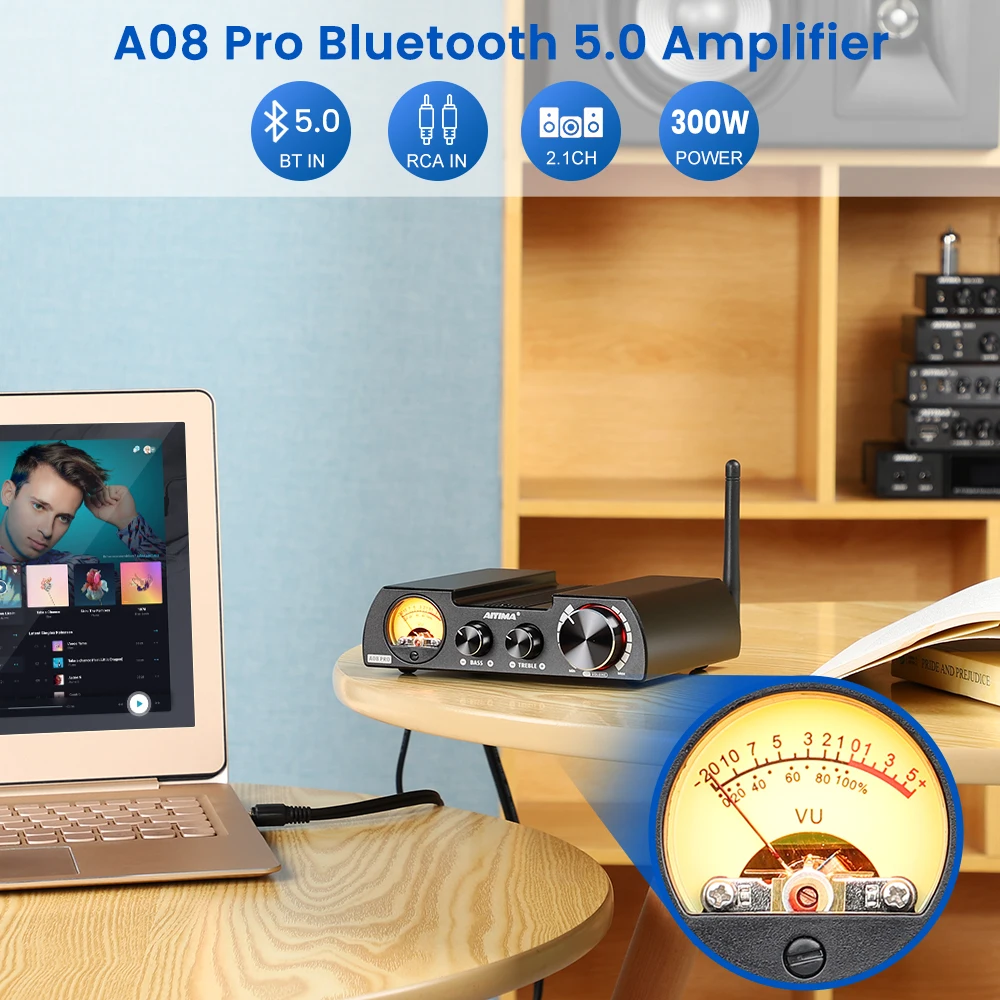

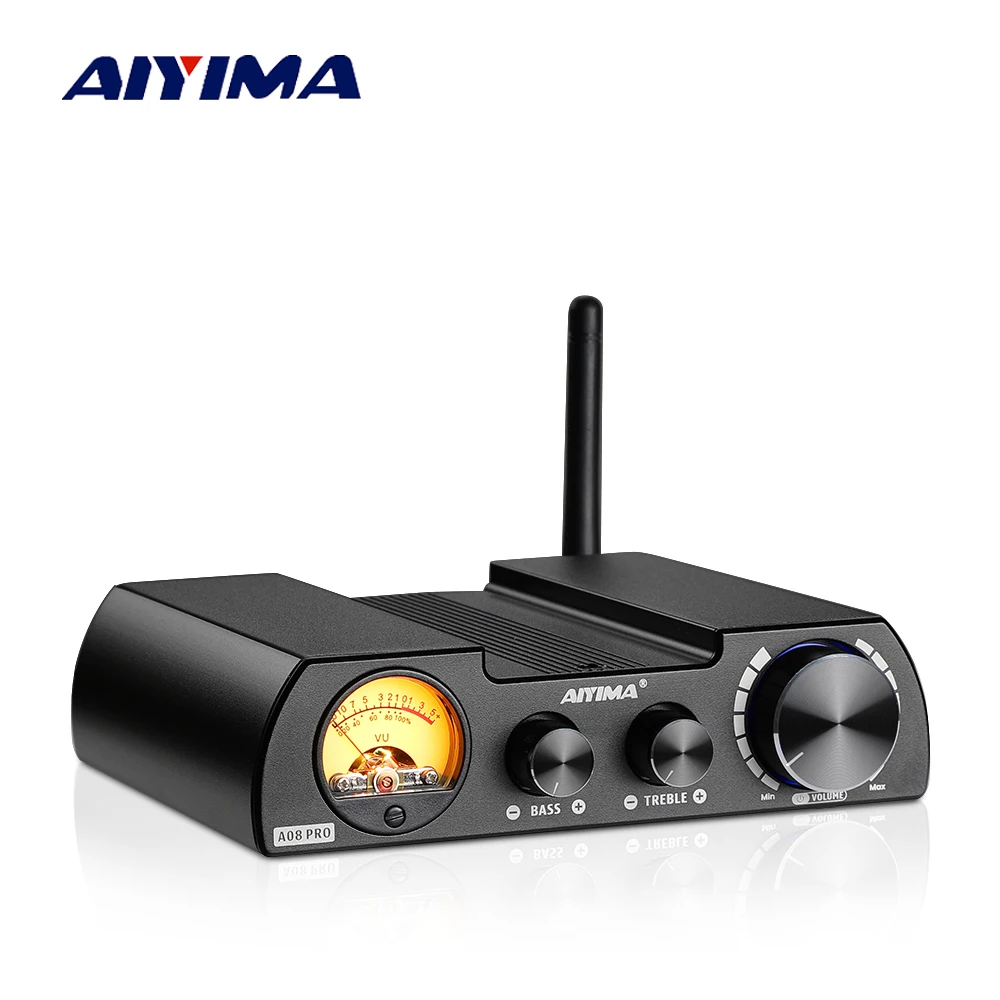

AIYIMA Audio A08 Pro Amplifier TPA3255 300W Bluetooth QCC5125 APTX Stereo Receiver Digital Amp VU Meter Bass Treble Control

Product Description

Feature
Unique and amazing combination: integrated A8 Pro amplifier with VU meter into whole in such a mini size, when enjoy HiFi music, the pointer dancing in the warm light with strong vintage feelings, dynamically decorates the audio system space.

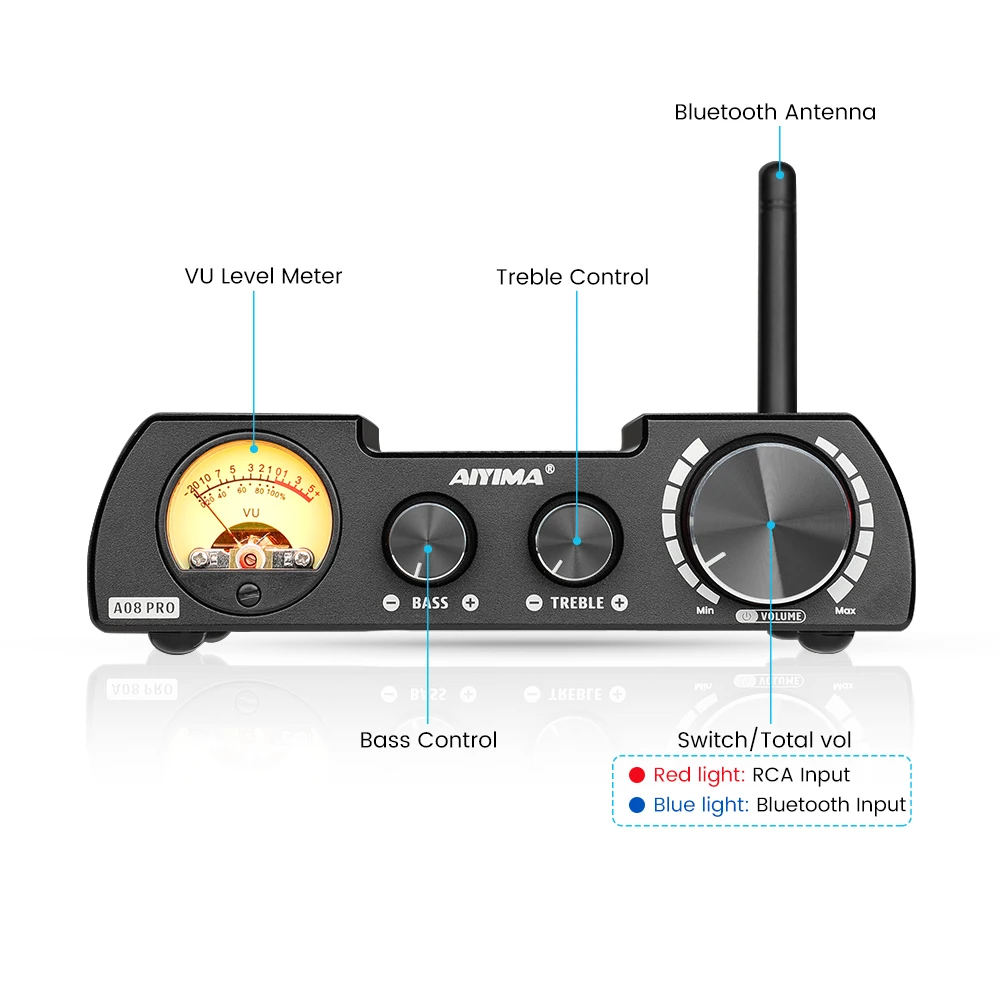

HiFi clear sound with tone control: resonable circuit and concise wiring,sounds warm and sweet without noise. Also with treble and bass knobs to adjust one’s own preferable sound styles, presents HiFi music with rousing highs and deep lows.

Strong output power and low frequency output: Adopted TPA3255 Chip,each channel can output 300W(4Ω), match perfectly and easily to drive all 3-8Ω passive speakers, adds a low frequency output easy to connect active speakers and build 2.1 channel system, the bass effects is greatly enhanced.

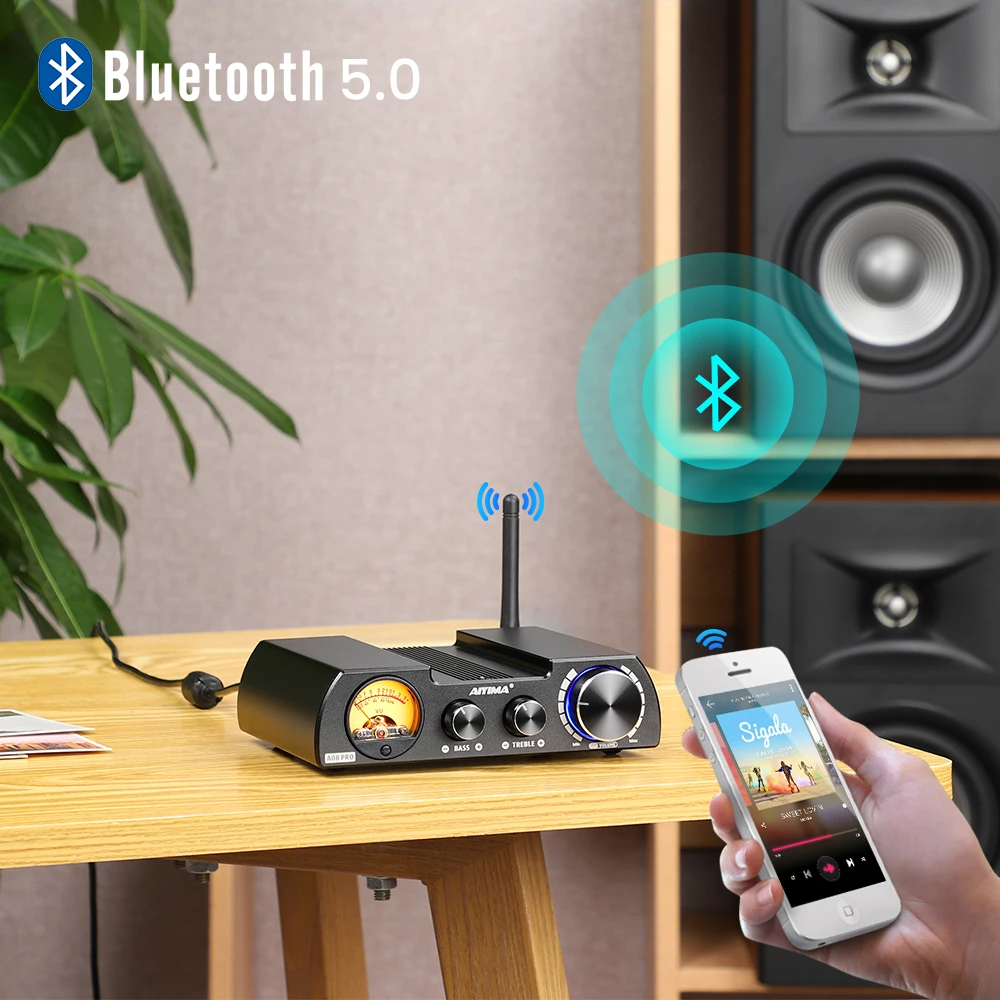

Bluetooth 5.0 Audio Wireless HD transmission: Adopt Qualcomm QCC5125 Chip,wireless music streaming technology with external antenna make a transmission distance of 10m,Support SBCAACAPTXAPTX-LLAPTX-HDLDAC

Practical funtions to simplify use:aluminum alloy case is specially designed, cool and unique to decorate your desktop space.

Basic Parameters:
Chipset: TPA3255+QCC5125+CS4344+NE5532P+CD4052
Bluetooth chip: QCC5125
Version: 5.0
Supported protocols: SBCAACAPTXAPTX-LLAPTX-HDLDAC
Signal to noise ratio: ≥104db
Input sensitivity: 0.775V
Frequency response: 20-20Khz (±1db)
Speaker impedance: 4-8Ω (left and right channels)
High and low pitch: ±6db
Output power: 300W*2 (4Ω load)
Maximum output power: 600W

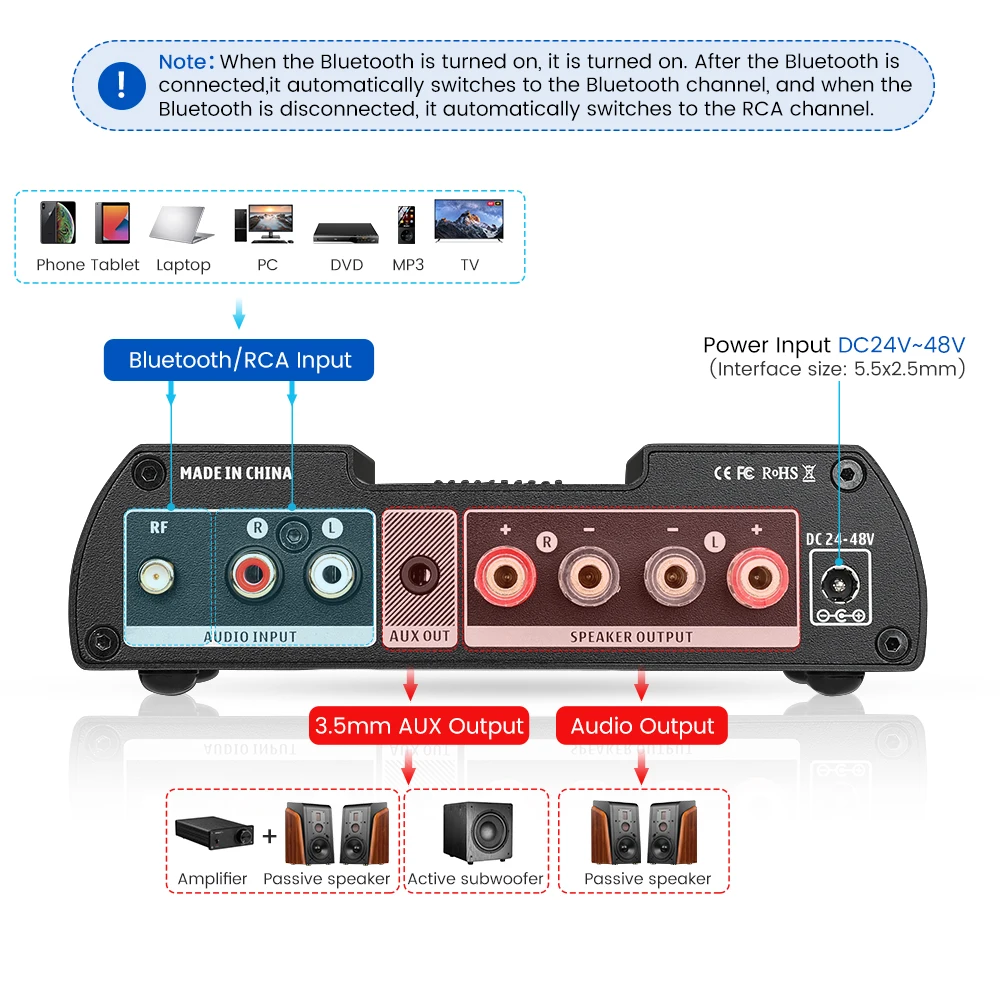

Input mode: RCA/Bluetooth
Supported equipment: mobile phone, tablet, computer, MP3, TV, etc.Output mode: passive speakers, AUX (can be connected to active speakers, active subwoofers, power amplifiers, etc.)
Working power supply: DC 24-48V
Size: length 123* width 152* height 40mm (excluding knobs and protruding parts)Product net weight: 686g (bare machine without accessories)

Package included:
1*A8 pro amplifier
1*bluetooth antenna
1*Manual
1*Power adapter(it’s optional)
